Aimbridge Energy Nanogrids and Microgrids
Easy installation and easy operation, manage your energy distribution between renewables, AC grid, and battery.
Power
5kW to 20kW
Energy Capacity
8.6kWh to 51.9kWh
Low Voltage
48VDC
Your one-stop-shop
smart energy solution:
The Microgrid
Our Aimbridge Energy DC Microgrid packages provide power system capacities ranging from 5kW to 20kW and the ability to create multiple power cabinet configurations. Our intelligent Energy Management System ensures you have control over choosing your most reliable energy source, day or night.
Outdoor Cabinet Systems
-
Fully integrated, outdoor NEMA 3R and NEMA 4X nanogrid and microgrid cabinet systems.
-
Configurable with internal power conversion and power distribution and energy storage or energy storage only or hybrid solutions for support of point of use E.V. charging.
-
PV solar array and wind power inputs, integral generator input and transfer switch.
-
Internal rack mounted energy storage modules supporting several battery chemistry options including Lithium, Valve Regulated Lead Acid (VRLA) and others.
-
Integrated microgrid controller with both local and remote data access. Cloud based options as well as local smartphone App support.
-
Excellent building block for behind the meter or off-grid clean energy systems integrating power inputs, energy storage and power outputs that can be direct DC, AC or hybrid DC/AC for maximum application flexibility.
-
Ideal for drop-in E.V. Charging systems. Can be integrated with P.V. Array shade structures.
-
Perfect solution for remote, indigenous, and isolated communities as well as disadvantaged community microgrid and nanogrid projects. Drop-in, pre-packaged and easy to implement at low cost with modular components to allow local community member maintenance, repair and tech support.
-
Version configuration with renewable generation and internal energy storage for low DC voltage direct feed for street and parking lot LED lighting, LED security lighting for parking lots, auto dealerships and other applications.
-
Configurable as behind the meter for self-generation of renewable energy for site loads or as fully independent off-grid solution without grid connectivity required.

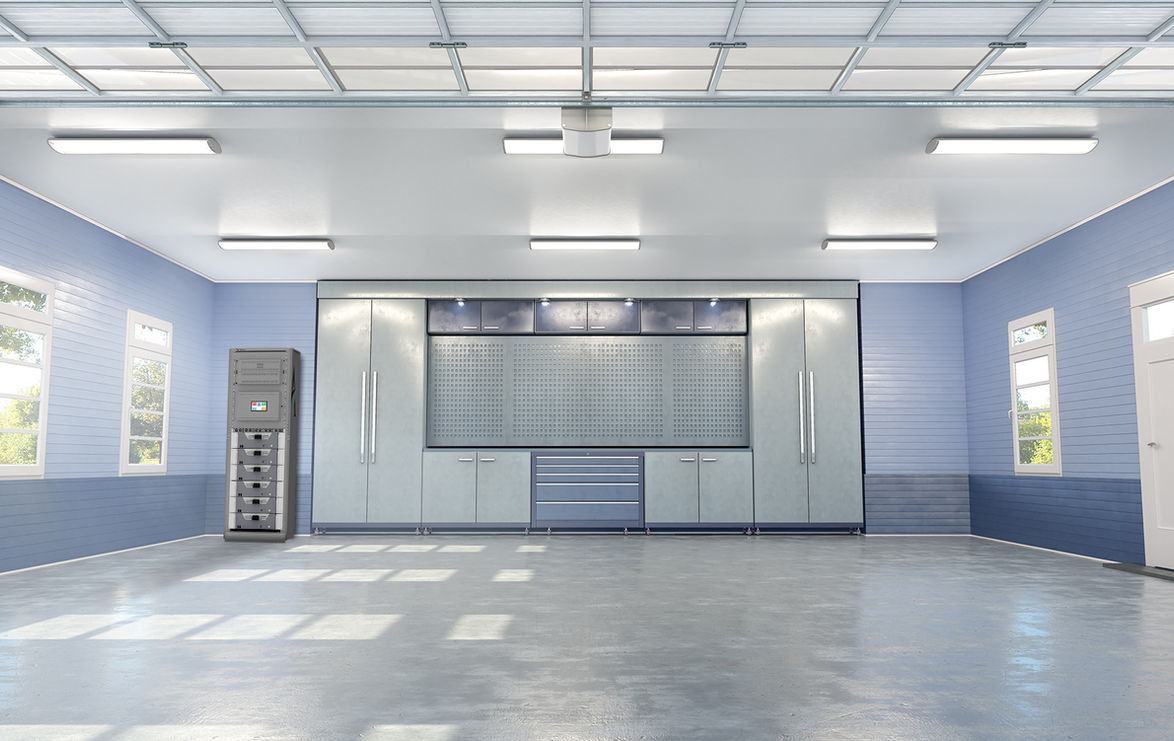

Your ultimate high-tech home
or business starts with the Microgrid.
Easy configuration capabilities
Modular power conversion components are configured in a redundant and hot-swappable system that allows for easy capacity scaling.
Components can be added, subtracted, re-configured, and serviced without downtime.
Three Primary
Energy Storage Topologies:
Energy Storage
Topology 1: VRLA (Valve Regulated Lead Acid)
Valve Regulated Lead Acid batteries offer rapid recharge and discharge capabilities and can last a very long time. These batteries have a wide operating temperature range making them ideal for varying climates.
Energy Storage Topology 2: Lead Crystal
Lead Crystal batteries also have a very rapid recharge rate and are good for thousands of battery cycles. These batteries are highly recyclable and are so safe and clean they can be transported easily as non-hazardous material.
Energy Storage
Topology 3: Lithium Ion
Lithium-Ion batteries are smaller than other batteries and pack quite a bit of power even in their reduced size. These batteries also support higher voltages so can be used in systems needing more capacity.
State-of-the-art software to maximize
energy production
All operating power parameters are measured, monitored, and controlled by an embedded computer.
User-programmable software "decision engine" maximizes energy production, energy storage, power routing, and grid-interactive revenue maximization.
Multiple systems can be paralleled together and controlled as a group.
Buck-Boost System
Modular, hot-swappable buck-boost DC-DC converters provide regulated 48VDC output to direct DC loads.
Multiple 48VDC outputs provide feeds to direct DC loads such as LED lighting, POE (power over ethernet), IT network equipment, DC-AC inverters to support AC legacy loads.
The buck-boost system provides DC-DC conversion voltage step down when energy storage is charged and boost voltage step up when batteries are low or discharged to maintain regulated and accurate 48V load support.
Rugged & Practical
Rugged, welded steel cabinet structure designed for Seismic Zone 4 compliance
Safety covers and panels allow for protection from power connections but also access for qualified installation and service personnel
A small footprint with a vertical configuration allows multiple power cabinets to be parallel in small spaces
Energy storage cabinets are available to mount adjacent to the power cabinet for additional energy storage resource capacity
Power distribution cabinets are available to mount adjacent to the power cabinet for both direct DC and AC power distribution to facility-residence loads
